Name: Face Recognition And Temperature Indicator Human Body Temperature Linux Operating System
Brand: Kadymay
Price: 650 USD

Brand Name : Kadymay

Model Number : KDM-FT8203E

Certification : CE FCC

Place of Origin : China

MOQ : 20pcs

Price : USD650/pc Negotiated price

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000 per week

Delivery Time : 5-16

Packaging Details : 42*20*16cm， 1pcs/box， 44*36*42cm 6pcs/box

Accuracy : ±0.5℃

Theory : Temperature Sensor

Product name : Intelligent temperature controller

Origin : China

Contact Now

Face Recognition And Temperature Indicator Human Body Temperature Linux Operating System

Specification:

Hardware
Chipset	Hi3516DV300
System	Linux operation system
RAM	16G EMMC
Image sensor	1/2.7" CMOS
Lens	4mm
Camera Parameters
Camera	Binocular camera supports live detection
Effective pixel	2Mega pixel,1920*1080
Min. lux	Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR	≥50db(AGC OFF)
WDR	≥80db
Face Recognition
Height	1.2-2.2 M, angle adjustable
Distance	0.5-3 Meters
View angle	Vertical ±30 degree
Reco. Time	<500ms
Temperature
Range	30-45(℃)
Accuracy	±0.3(℃)
Distance	0.3-0.8m
Response time	<300ms
Interface
Internet interface	RJ45 10M/100M Ethernet
Weigand port	Support input/output 26 and 34
Alarm output	1channel relay output
USB port	1USB port (Can be connected to ID identifier)
General
Power input	DC 12V/3A
Power consumption	20W(MAX)
Working temperature	10℃ ~ +50℃
Humidity	5~90%, no condense
Dimension	123.5(W) * 84(H) *361.3(L)mm
Weight	2.1 kg
Column aperture	33mm

Face Recognition And Temperature Indicator Human Body Temperature Linux Operating System

Hardware
Chipset	Hi3516DV300
System	Linux operation system
RAM	16G EMMC
Image sensor	1/2.7" CMOS
Lens	4.5mm
Camera Parameters
Camera	Binocular camera supports live detection
Effective pixel	2Mega pixel,1920*1080
Min. lux	Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
SNR	≥50db(AGC OFF)
WDR	≥80db
Face Recognition
Height	1.2-2.2 M, angle adjustable
Distance	0.5-2 Meters
View angle	Vertical ±40 degree
Reco. Time	＜500ms
Function	Support 22400 faces database and 100000 records
Temperature
Range	30-45(℃)
Accuracy	±0.3(℃)
Distance	0.3-0.8米
Response time	＜300ms
Interface
Internet interface	RJ45 10M/100M Ethernet
Weigand port	Support input/output 26 and 34
Alarm output	1channel relay output
USB port	1USB port (Can be connected to ID identifier)
General
Power input	DC 12V/3A
Power consumption	20W(MAX)
Working temperature	0℃ ～ +50℃
Humidity	5～90%, no condense
Dimension	123.5(W) * 45.5(H) *266(L)mm
Weight	1.9 kg

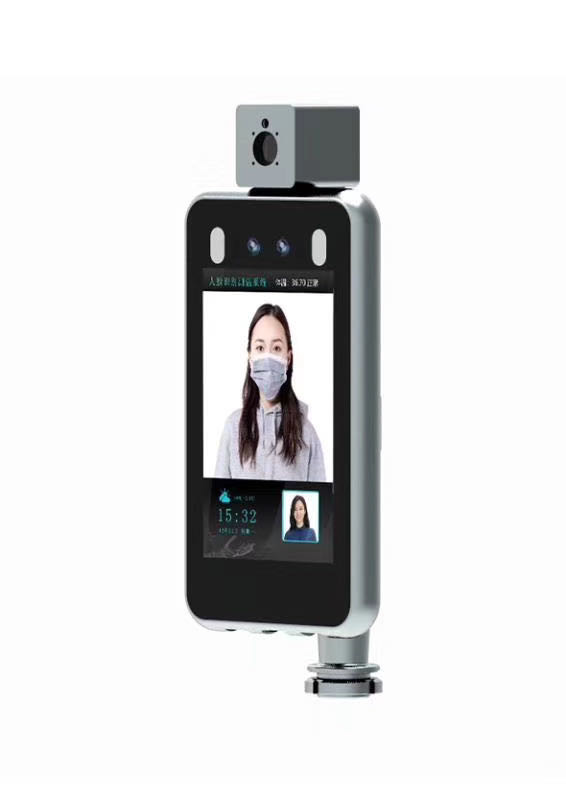

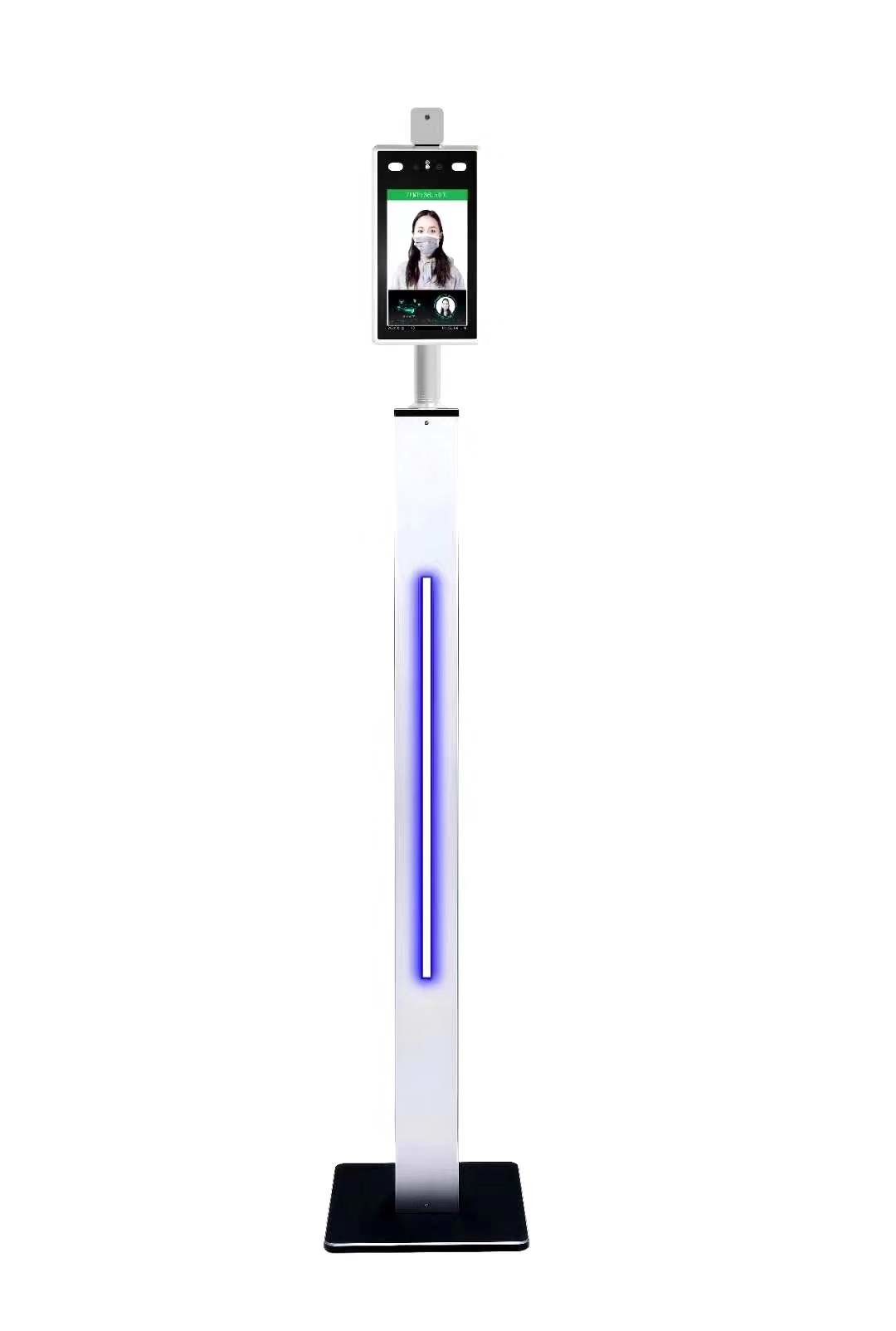

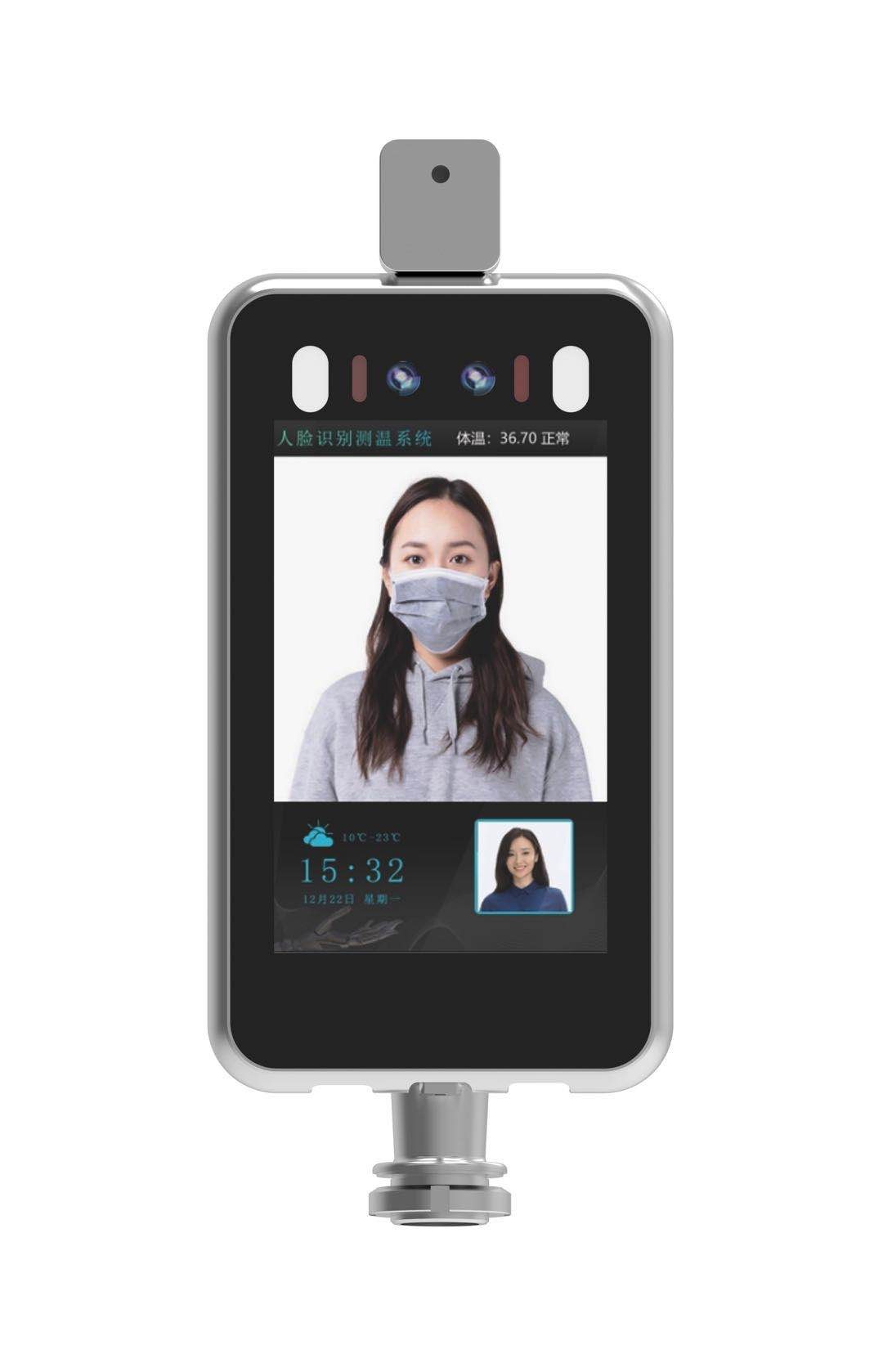

Face Recognition And Temperature Indicator Human Body Temperature Linux Operating System Images
